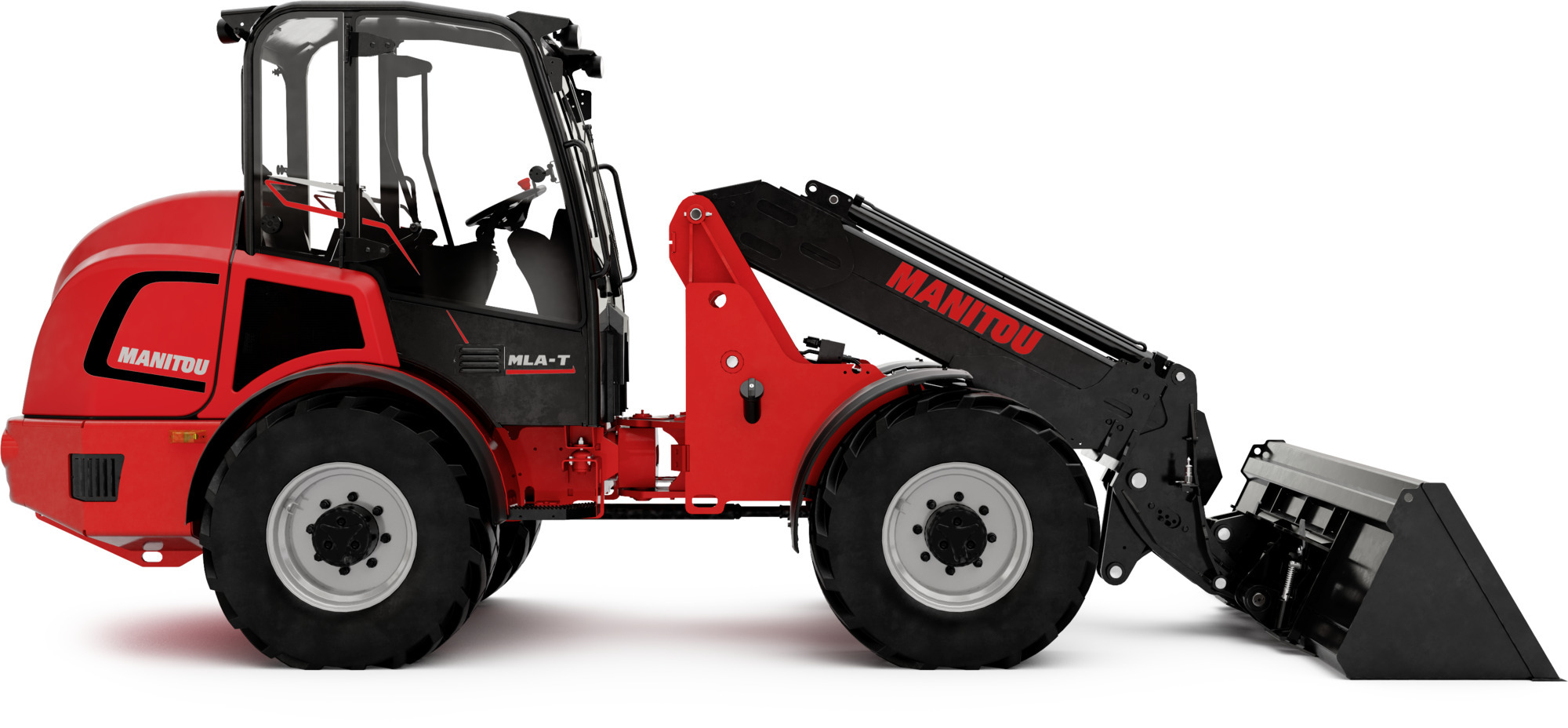

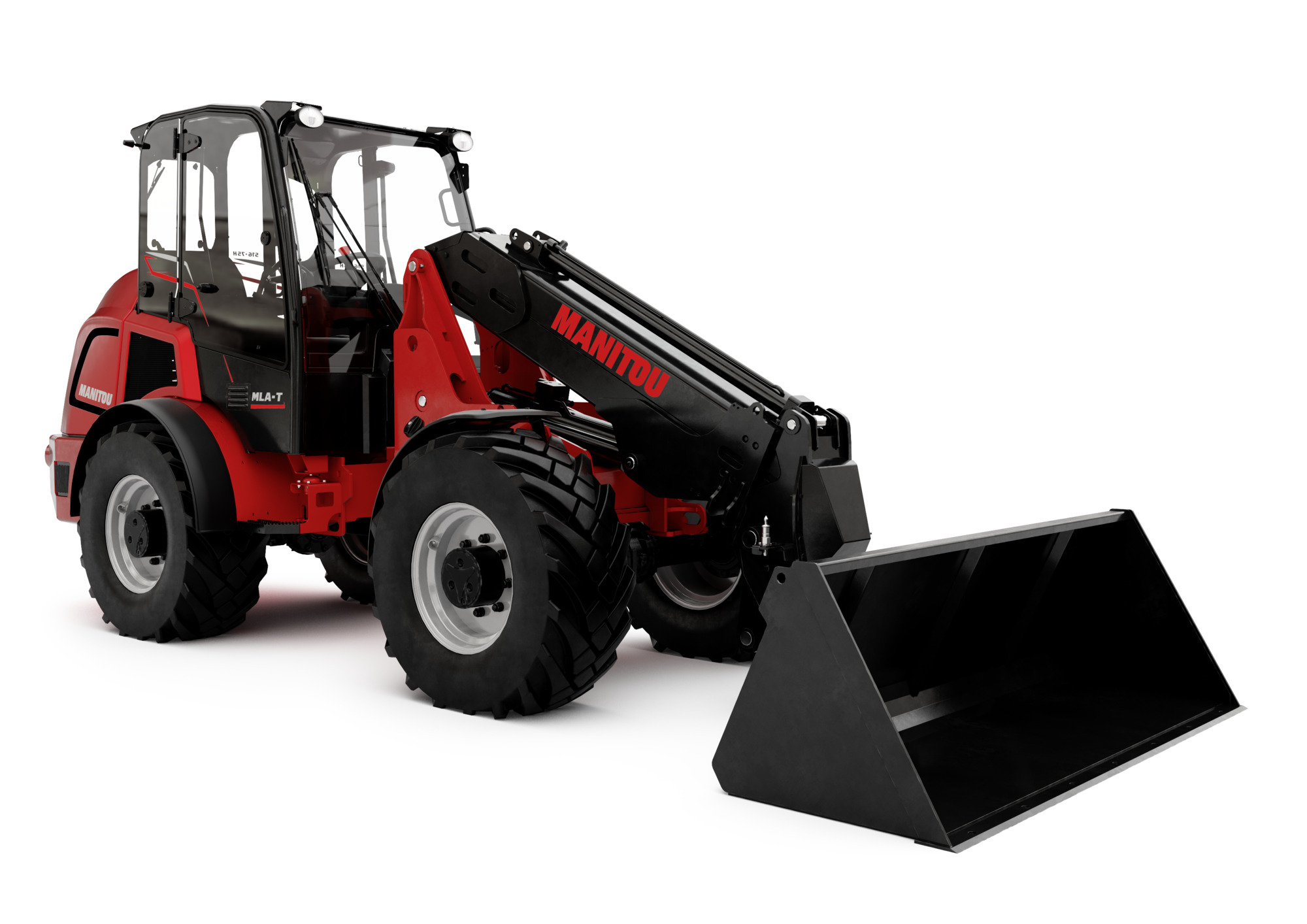

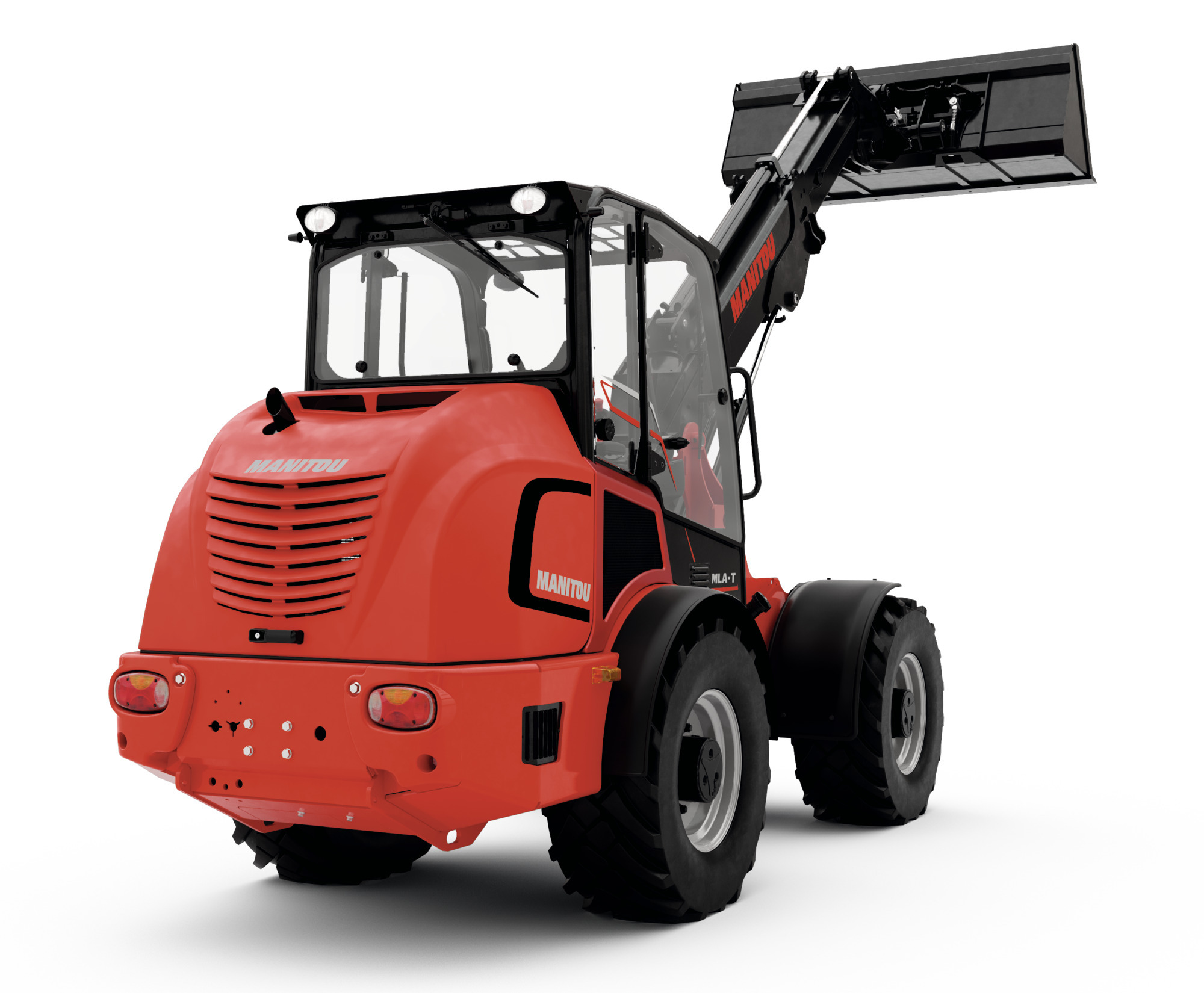

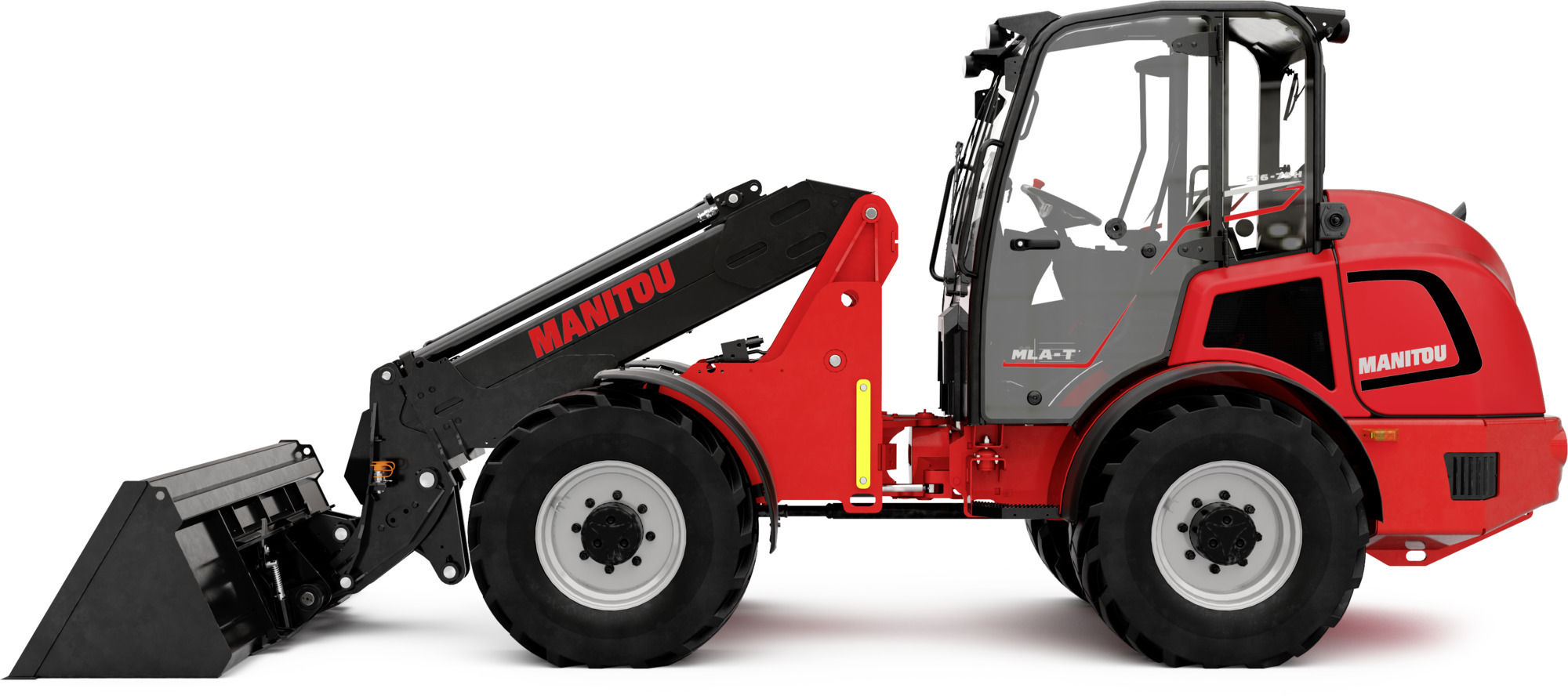

Articulated loader MLA-T 516-75 H

The Manitou MLA-T 516-75 H articulated loader combines the power of a high-performance engine with the maneuverability of an articulated chassis, offering an ideal solution for construction, industrial, or agricultural sites. Its compact size and telescopic boom allow easy operation in tight spaces while providing impressive reach and lift height, simplifying the handling of heavy or bulky materials.

Powered by a Deutz TD 3.6 L4 4-cylinder engine producing 74.3 hp (55.4 kW) and compliant with Stage V/Tier 4 standards, the MLA-T 516-75 H delivers optimal power and consistent performance for all operations. Its hydrostatic transmission and maximum speed of 30 km/h ensure smooth, safe movement, while the hydraulic drum brake on the front axle acting on all four wheels provides precise control and enhanced safety.

This articulated loader boasts remarkable lifting performance, with a static tipping load of 3,535 kg (straight configuration) and 2,732 kg (steered configuration), a maximum lift height at the bucket pivot of 5.03 m, and a maximum reach of 3.30 m, offering great versatility for a variety of tasks. The parallel lift arm and 44° articulation angle ensure precise operation even in confined environments.

The operator’s cab is designed for comfort, featuring 360° visibility, an ergonomic seat, and intuitive controls, allowing for efficient and safe work throughout the day. The machine can also be equipped with a wide range of attachments, including buckets, forks, grapples, or blades, to meet all site requirements.

Compact, robust, and powerful, the Manitou MLA-T 516-75 H stands out as a reliable and highly maneuverable articulated loader, combining agility, power, and operator comfort, ideal for construction, material handling, or heavy-duty operations in demanding spaces.
