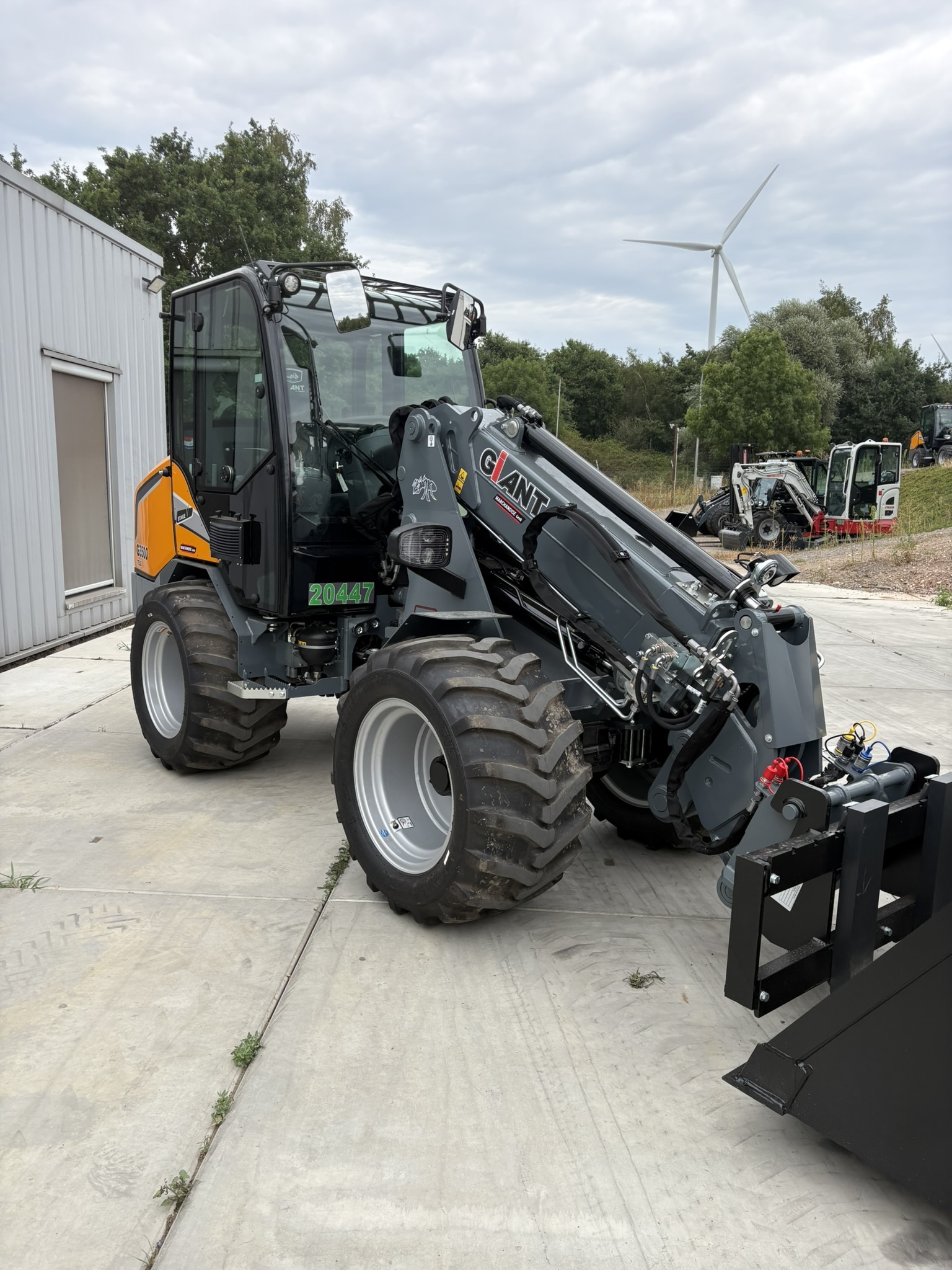

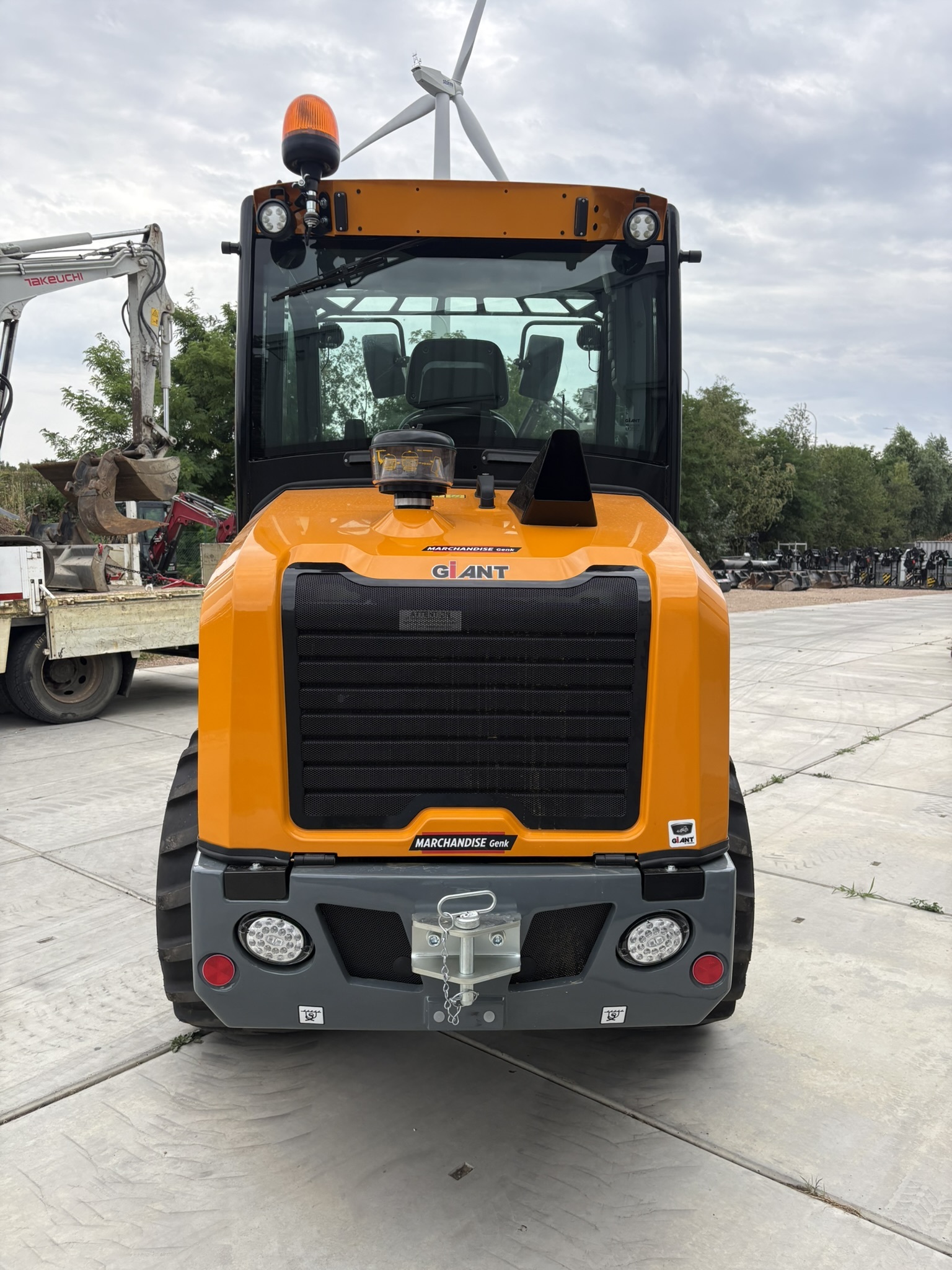

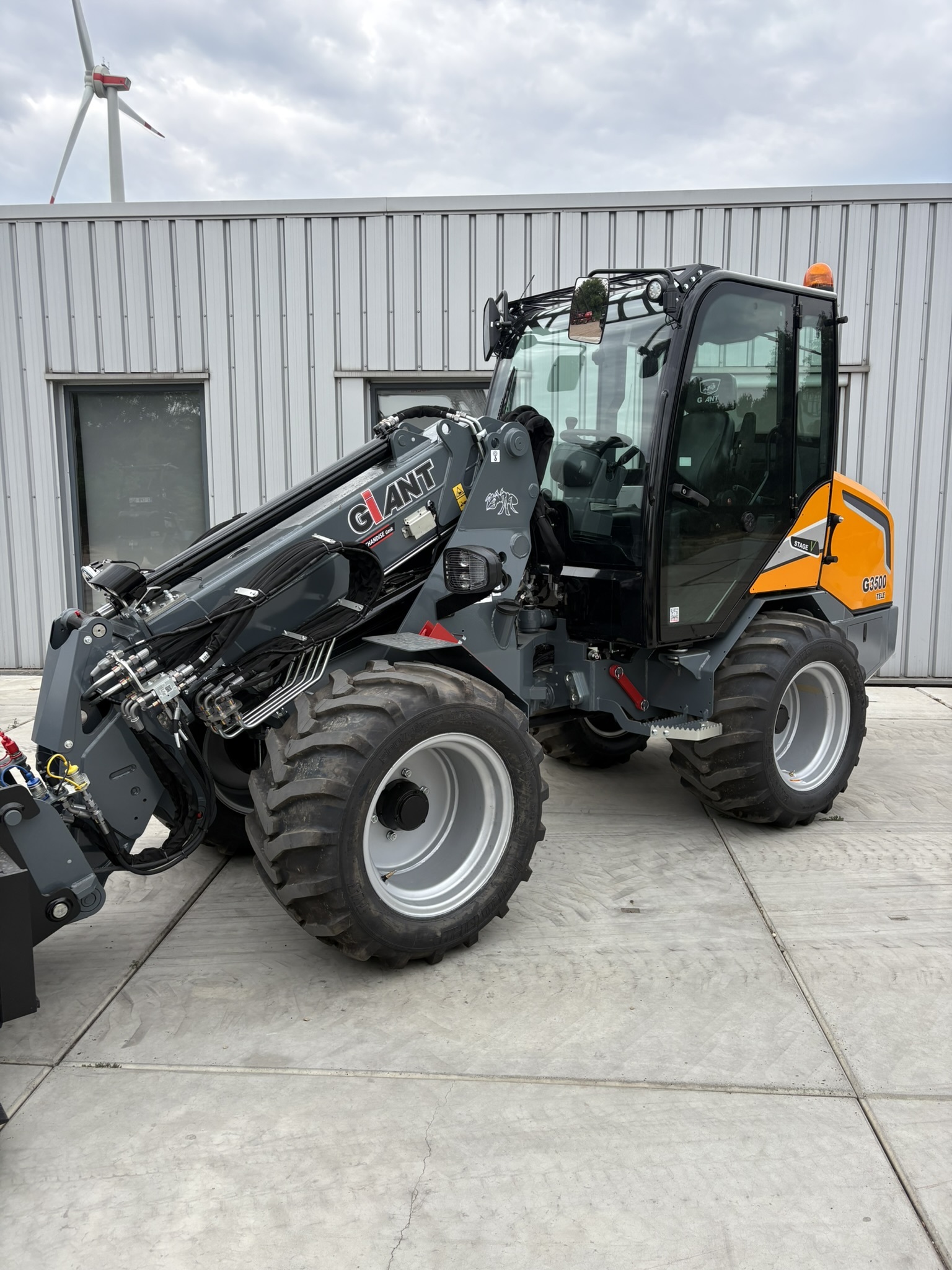

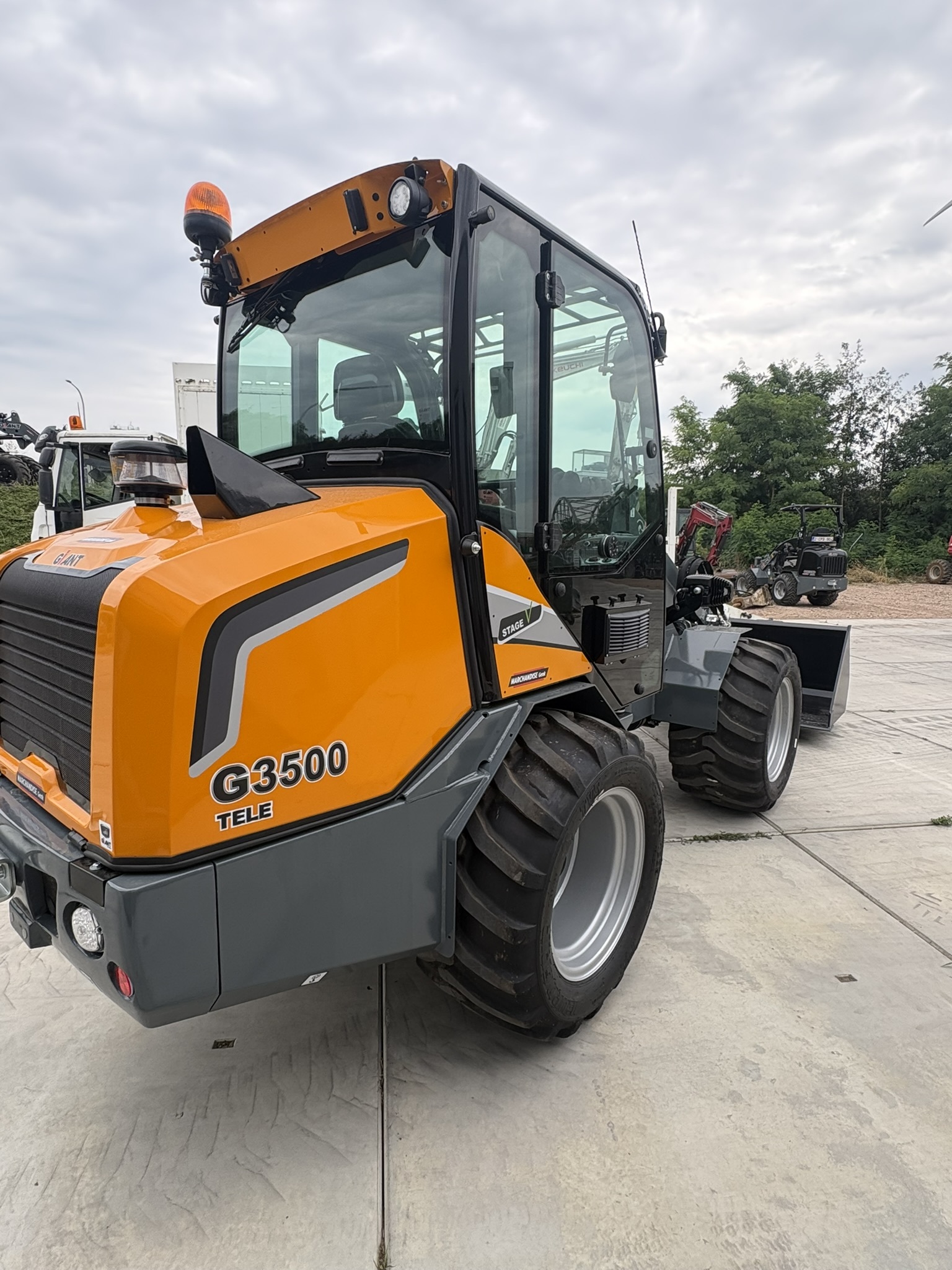

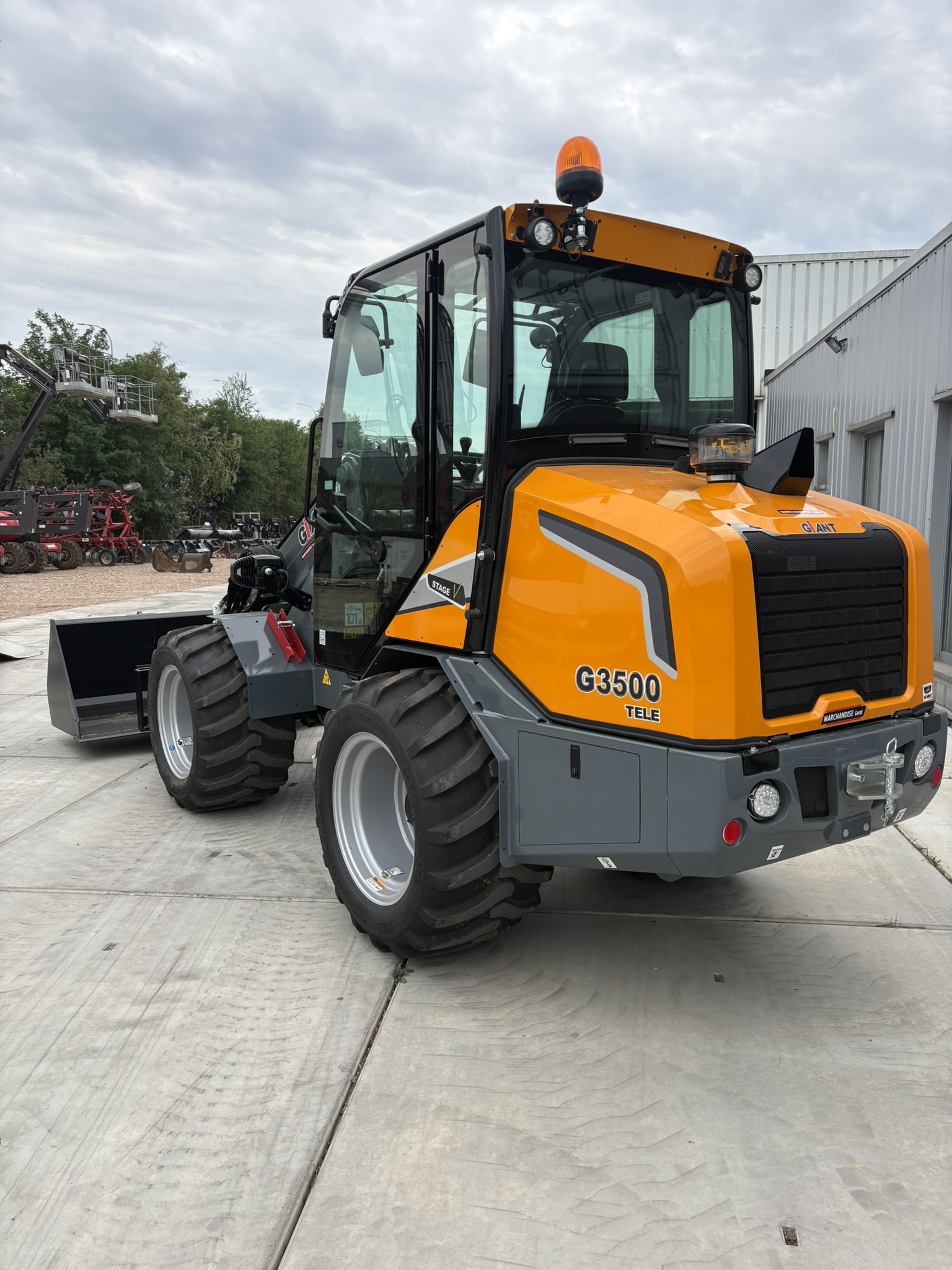

Articulated loader G3500 TELE - 20449

The Giant G3500 TELE telescopic articulated loader is a robust, powerful and versatile machine specifically designed to meet the demands of the construction, agriculture, industrial and landscaping sectors. Featuring a telescopic boom, hydrostatic four-wheel drive and compact dimensions, it offers an excellent combination of lifting capacity, reach and manoeuvrability, even in confined spaces.

The G3500 TELE stands out for its technical performance, making it well suited to intensive applications. It offers a maximum lifting height of 4.31 metres, allowing operators to easily load skips, trailers and elevated platforms. Its telescopic boom significantly extends the working reach, making material handling operations more efficient in demanding environments.

Powered by a 66 hp (48.5 kW) Kubota V2403-CR-TE5B Stage V engine, the Giant G3500 TELE delivers consistent performance while complying with the latest emissions standards. Its 70 l/min hydraulic system operating at 220 bar provides excellent hydraulic power for attachments, while the hydrostatic transmission with automatic gearbox enables a maximum travel speed of 30 km/h, ensuring fast and efficient movement around the job site.

With a width of 1.34 metres, a length (without bucket) of 4.10 metres, and an operating weight of approximately 4,000 kg, the G3500 TELE retains compact dimensions that make it easy to manoeuvre in agricultural buildings, warehouses and urban construction sites. Its pendulum articulation system keeps all four wheels in constant contact with the ground, ensuring excellent stability, optimum traction and outstanding operator comfort on uneven terrain.

One of the G3500 TELE's key strengths is its productivity-oriented design. It features hydrostatic four-wheel drive, 100% engageable differential locks on both axles, and heavy-duty 14-ton planetary axles, providing exceptional traction even on challenging terrain. These features make it an ideal machine for intensive material handling, earthmoving, loading operations and agricultural applications.

The Giant G3500 TELE telescopic articulated loader is also highly versatile, thanks to its GIANT hydraulic quick-coupler system, which allows a wide range of attachments to be fitted quickly and easily. Buckets, pallet forks, grapples, sweepers, clamps and many other specialised implements can be installed to adapt the machine to a variety of applications, including material handling, loading operations, agricultural work, site maintenance and landscaping. As a result, it is an ideal solution for professionals seeking a reliable, high-performance and versatile machine capable of operating efficiently in the most demanding working conditions.
