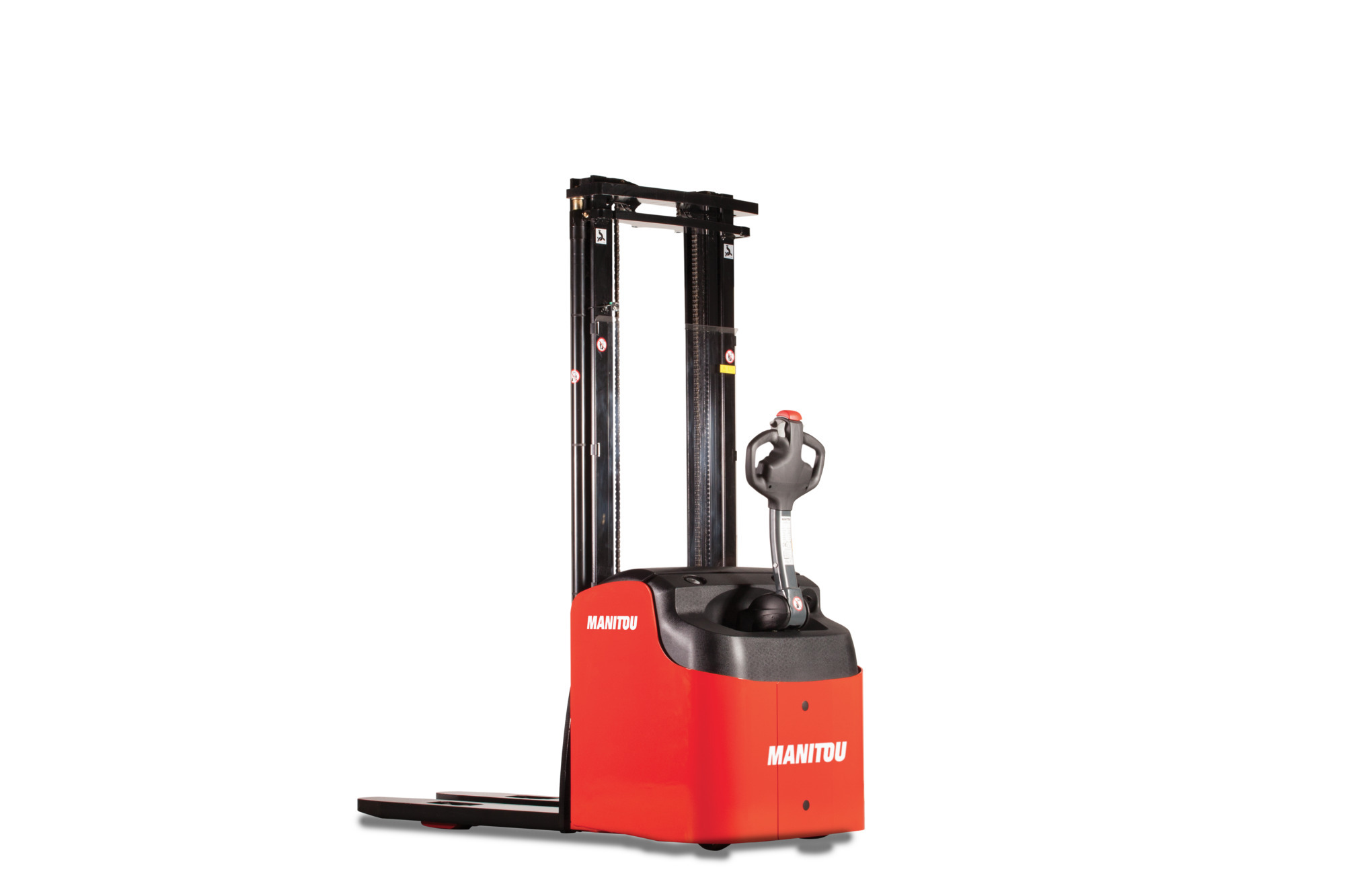

The Manitou ES 616 (5-point) is a high-performance electric stacker, specifically designed for warehousing, industrial environments, and intensive handling operations. Compact, robust, and reliable, it combines the agility of a professional stacker with the power needed to streamline your logistics flow: ideal for pallet stacking, transporting heavy loads of up to 1,600 kg, and order picking in warehouses or storage areas. This model efficiently supports your teams in demanding day-to-day operations while ensuring both safety and productivity.
Thanks to its high-lift mast, this Manitou electric stacker is perfectly suited for high-level storage on racks and shelving, maximizing the use of available space within your facilities. Its initial lift (IL) function also allows it to easily navigate uneven surfaces, slopes, or dock level transitions, offering enhanced versatility across a wide range of handling applications. Its compact design (overall length of approximately 1.995 meters and width of 0.80 meters), combined with polyurethane-coated wheels, ensures excellent maneuverability even in narrow aisles, while providing smooth, stable, and quiet operation.
The ES 616 (5-point) is equipped with a high-performance AC electric motor, delivering 1.50 kW for traction and 3 kW for lifting, powered by a 24 V / 180 Ah battery for efficient and long-lasting operation. It offers a travel speed of 6 km/h, whether loaded or unloaded, along with a lifting speed of 0.18 m/s under load and 0.30 m/s unloaded, ensuring a smooth and productive workflow. Thanks to Can-Bus technology, communication between electronic components is optimized, facilitating stacker movements and simplifying maintenance.
In summary, the Manitou ES 616 (5-point) is a versatile and high-performing electric stacker, perfectly suited for warehousing, material handling, and industrial storage operations. Compact, powerful, and quiet, it enhances your logistics processes, improves operator safety, and boosts team productivity, while meeting the most demanding standards of modern industry.
Information & specifications
The Manitou ES 616 (5-point) is a high-performance electric stacker, specifically designed for warehousing, industrial environments, and intensive handling operations. Compact, robust, and reliable, it combines the agility of a professional stacker with the power needed to streamline your logistics flow: ideal for pallet stacking, transporting heavy loads of up to 1,600 kg, and order picking in warehouses or storage areas. This model efficiently supports your teams in demanding day-to-day operations while ensuring both safety and productivity.
Thanks to its high-lift mast, this Manitou electric stacker is perfectly suited for high-level storage on racks and shelving, maximizing the use of available space within your facilities. Its initial lift (IL) function also allows it to easily navigate uneven surfaces, slopes, or dock level transitions, offering enhanced versatility across a wide range of handling applications. Its compact design (overall length of approximately 1.995 meters and width of 0.80 meters), combined with polyurethane-coated wheels, ensures excellent maneuverability even in narrow aisles, while providing smooth, stable, and quiet operation.
The ES 616 (5-point) is equipped with a high-performance AC electric motor, delivering 1.50 kW for traction and 3 kW for lifting, powered by a 24 V / 180 Ah battery for efficient and long-lasting operation. It offers a travel speed of 6 km/h, whether loaded or unloaded, along with a lifting speed of 0.18 m/s under load and 0.30 m/s unloaded, ensuring a smooth and productive workflow. Thanks to Can-Bus technology, communication between electronic components is optimized, facilitating stacker movements and simplifying maintenance.
In summary, the Manitou ES 616 (5-point) is a versatile and high-performing electric stacker, perfectly suited for warehousing, material handling, and industrial storage operations. Compact, powerful, and quiet, it enhances your logistics processes, improves operator safety, and boosts team productivity, while meeting the most demanding standards of modern industry.
