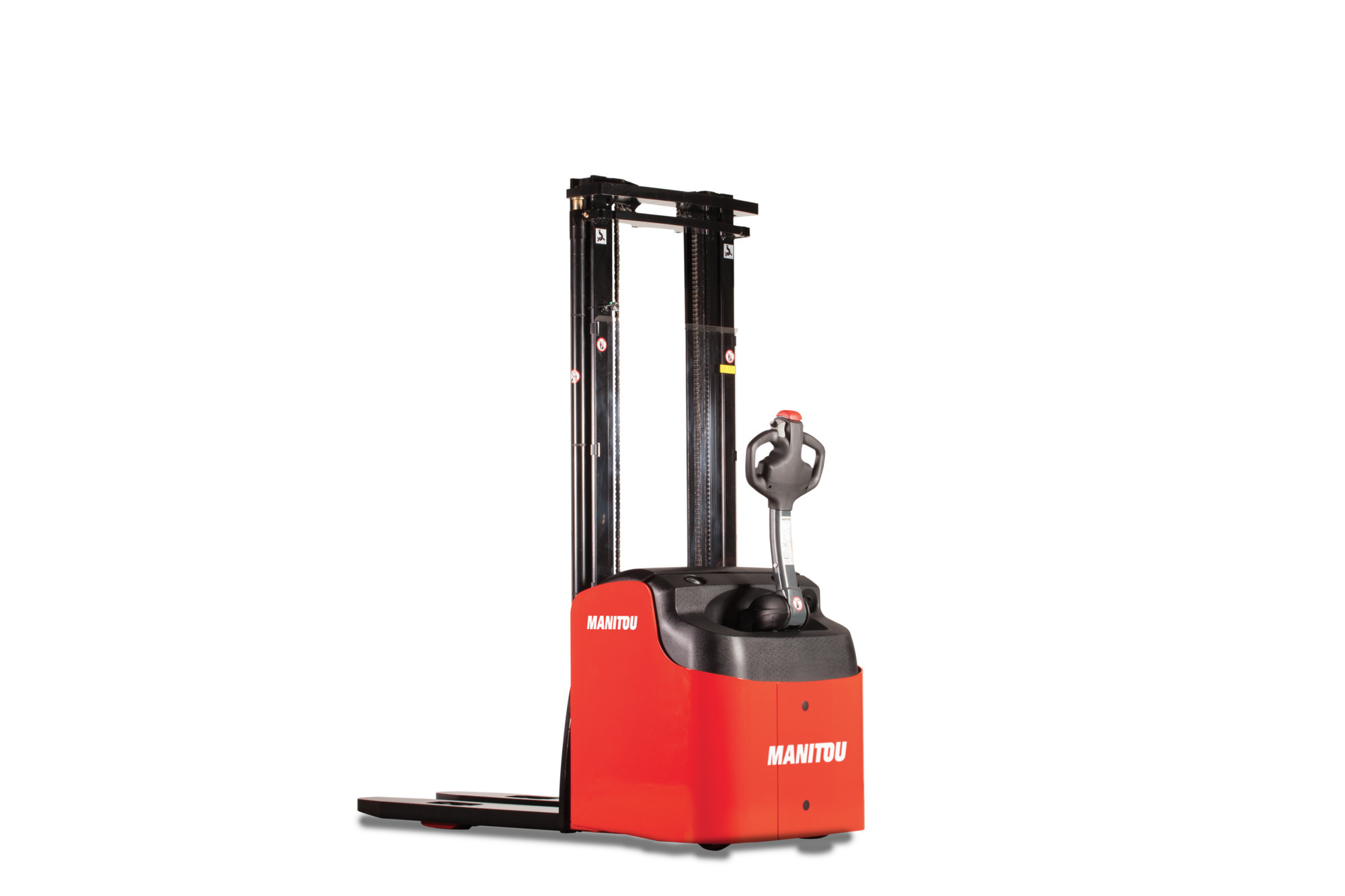

The Manitou ES 614 (5-point) is a high-performance electric stacker specifically designed for warehousing, industry, and demanding material handling operations. Compact, powerful, and reliable, it combines the maneuverability of a professional stacker with strong lifting capacity, making it ideal for pallet stacking, heavy load transport, and order picking in warehouses and logistics areas. With a maximum lifting capacity of 1,400 kg, the ES 614 (5-point) allows safe handling and movement of heavy loads, optimizing workflow efficiency and overall productivity.
Equipped with a high-lift mast, this Manitou electric stacker is perfectly suited for high-rack storage systems, maximizing warehouse space utilization. Its compact build—approximately 2.05 m in length and 0.80 m in width—combined with polyurethane banded wheels, ensures excellent maneuverability even in narrow aisles, while providing smooth, stable, and quiet operation. This ergonomic design reduces operator fatigue and improves efficiency in intensive working environments.
In terms of performance, the ES 614 (5-point) features a reliable AC drive system (1.50 kW for traction and 3 kW for lifting), powered by a 24 V / 250 Ah battery, ensuring consistent power throughout the working day. It reaches a uniform travel speed of 6 km/h, whether loaded or unloaded, and offers lifting speeds of 0.30 m/s unloaded and 0.18 m/s loaded, guaranteeing smooth and productive operations. Its integrated CAN-Bus system simplifies maintenance, reduces operating costs, and enhances equipment durability.
In summary, the Manitou ES 614 (5-point) is a versatile and high-performing electric stacker ideally suited for warehousing, handling, and industrial storage operations. Compact, quiet, and powerful, it optimizes logistics processes, improves operator safety, and increases productivity while meeting the strict requirements of modern industrial environments.
Information & specifications
The Manitou ES 614 (5-point) is a high-performance electric stacker specifically designed for warehousing, industry, and demanding material handling operations. Compact, powerful, and reliable, it combines the maneuverability of a professional stacker with strong lifting capacity, making it ideal for pallet stacking, heavy load transport, and order picking in warehouses and logistics areas. With a maximum lifting capacity of 1,400 kg, the ES 614 (5-point) allows safe handling and movement of heavy loads, optimizing workflow efficiency and overall productivity.
Equipped with a high-lift mast, this Manitou electric stacker is perfectly suited for high-rack storage systems, maximizing warehouse space utilization. Its compact build—approximately 2.05 m in length and 0.80 m in width—combined with polyurethane banded wheels, ensures excellent maneuverability even in narrow aisles, while providing smooth, stable, and quiet operation. This ergonomic design reduces operator fatigue and improves efficiency in intensive working environments.
In terms of performance, the ES 614 (5-point) features a reliable AC drive system (1.50 kW for traction and 3 kW for lifting), powered by a 24 V / 250 Ah battery, ensuring consistent power throughout the working day. It reaches a uniform travel speed of 6 km/h, whether loaded or unloaded, and offers lifting speeds of 0.30 m/s unloaded and 0.18 m/s loaded, guaranteeing smooth and productive operations. Its integrated CAN-Bus system simplifies maintenance, reduces operating costs, and enhances equipment durability.
In summary, the Manitou ES 614 (5-point) is a versatile and high-performing electric stacker ideally suited for warehousing, handling, and industrial storage operations. Compact, quiet, and powerful, it optimizes logistics processes, improves operator safety, and increases productivity while meeting the strict requirements of modern industrial environments.
