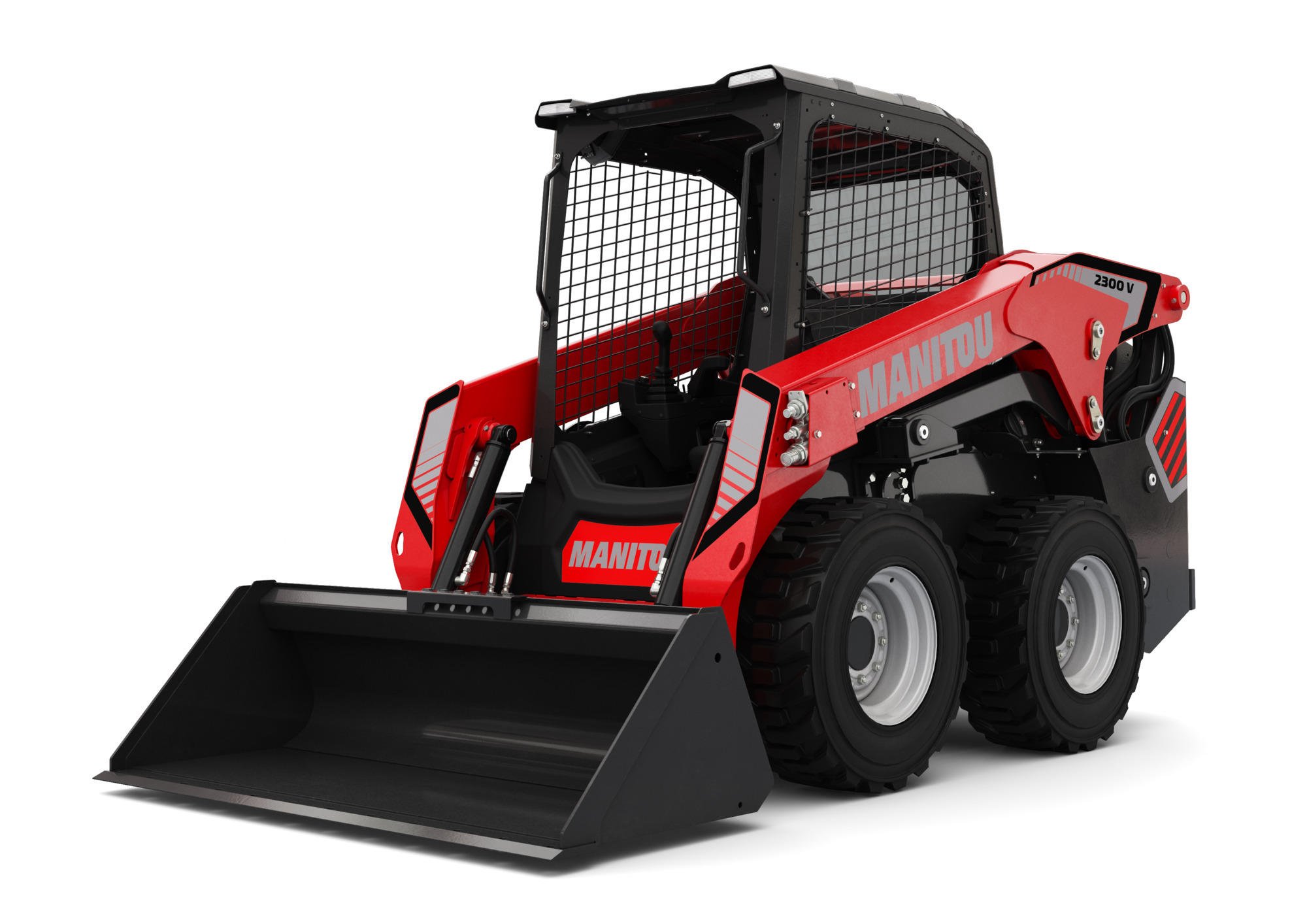

Compact loader 2300V

The Manitou 2300V compact loader is a robust, high-performance machine, specifically designed to meet the demands of the construction sector. Thanks to its vertical lift system, it can discharge materials further into large trucks, boosting productivity on job sites. Versatile and reliable, this compact loader is ideal for earthmoving, material handling, and a wide range of operations across diverse construction sites.

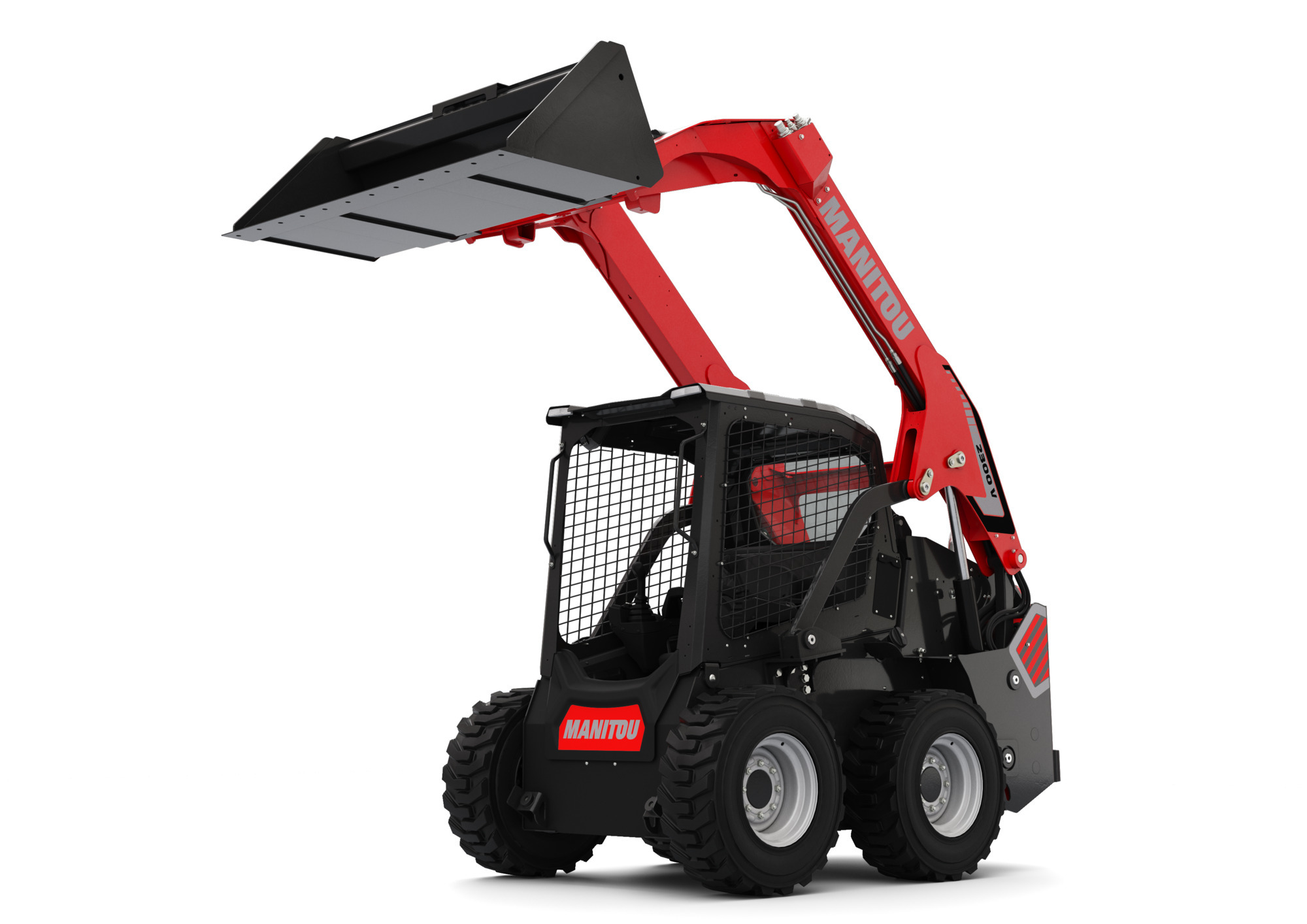

With a tipping load of 2,086 kg and a rated operating capacity of 1,043 kg at 50% of tipping load, the Manitou 2300V delivers consistent performance even under the most demanding conditions. Its maximum working height of 4.04 meters and dump height of 2.31 meters, combined with a 42° dump angle, allow precise material placement and optimize work cycles for maximum efficiency on site.

The compact design of the Manitou 2300V, with an overall width of 1.71 meters, ensures exceptional maneuverability in tight spaces. The ergonomic operator station provides clear visibility and superior comfort, enabling precise handling while reducing operator fatigue. The cab can be fully tilted for easy access to components, simplifying daily maintenance and lowering total cost of ownership.

Equipped with a hydraulic flow of 86.5 l/min (high-flow option 114 l/min), this compact loader is compatible with a wide range of Manitou attachments, suitable for numerous construction applications such as grading, site cleanup, and material handling. The hydrostatic transmission and all-terrain tires ensure optimal traction and enhanced stability on soft or uneven ground, delivering safety and efficiency across all types of terrain.

In summary, the Manitou 2300V is a high-performing, stable, and versatile compact loader, perfectly suited to the demands of construction sites. With its 72 hp engine, compact design, and vertical lift system, it is a reliable tool for maximizing productivity and ensuring safe daily operations on site.
